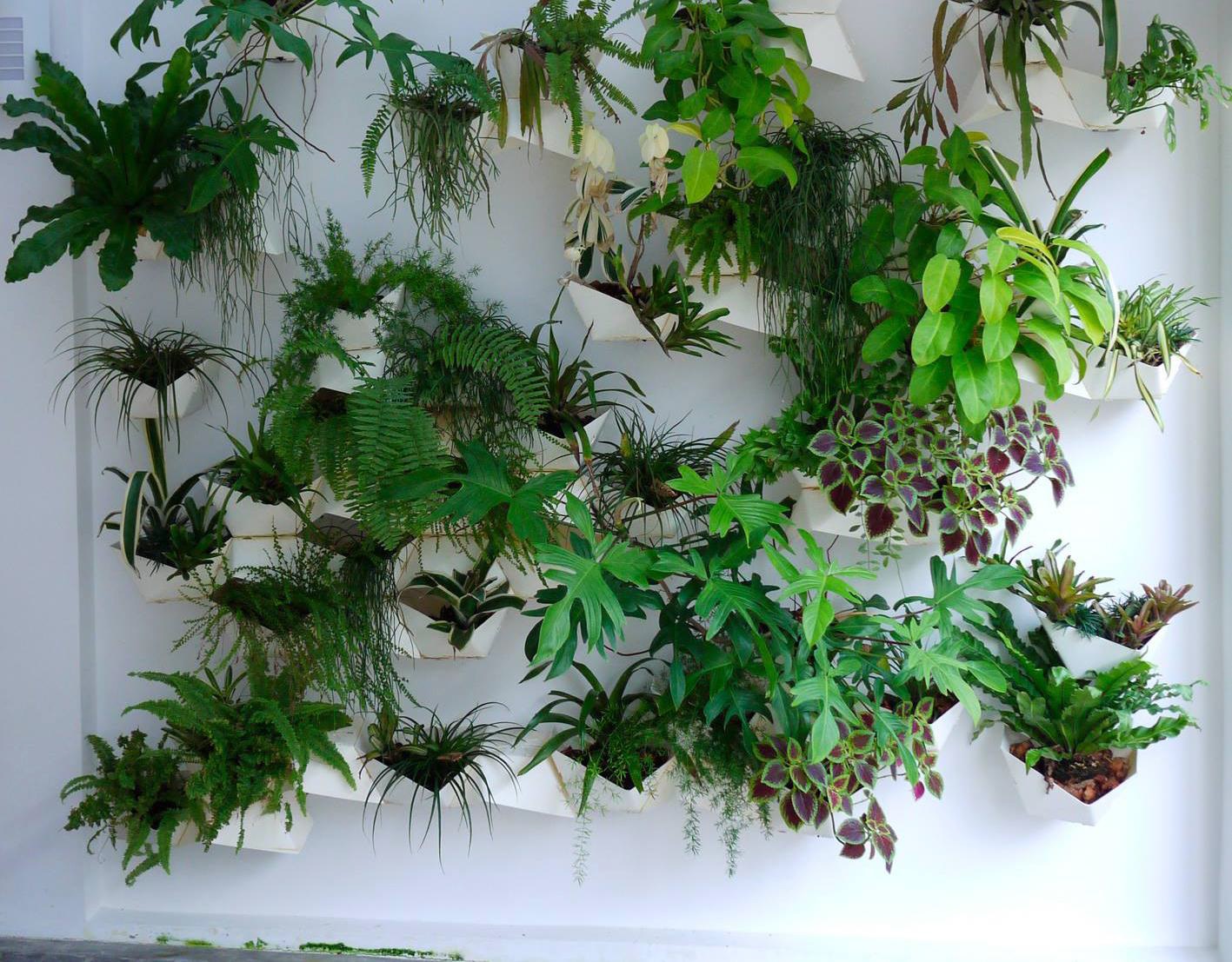

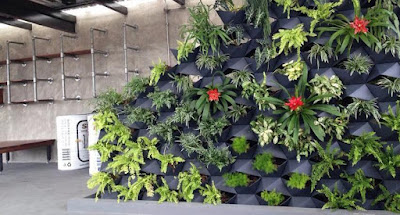

Vertical Garden @ PRAI Pots

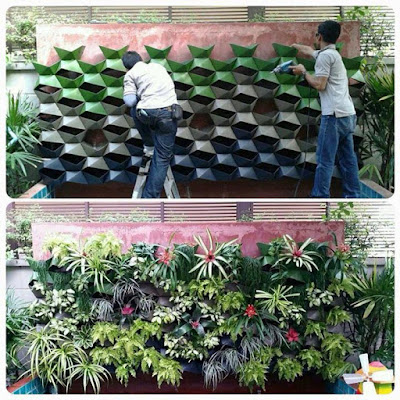

PRAI is a D.I.Y. modular system made from high quality outdoor plastic for the creation
of vertical gardens. This type of plantpots allow for customization of design for aesthetic
value along with the usual benefit of a vertical garden - creating a cooling atmosphere
within a space.

Finishing: Off White, Black, Green, Brown
Size: W29.5 x L29.5 x H14.8 cm
Usage per sq. meter = 28 units (approx)
Stand alone allowable height 1.5m to 3m

Parts needed for structures above 2 meters in height.




Stand Alone Systems

K-Rain PROSERIES 100 ELECTRIC VALVES

This reliable valve offers a straight through flow pattern that dramatically reduces pressure loss and reduces the risk of trapped debris that causes other brands to fail.

• Self-cleaning screen with straight flow-through pattern.


• Internal and external bleed in additional to optional flow control.


• Captured Plunger Solenoid

The valve body is constructed of UV and corrosion resistant PVC material.  The valve is available in NPT, welded slip and BSP configurations.  The valve is manufactured for 3 different applications:

1.  To accept 1” Female slip or 1 ¼” slip installation within the same unit.

2.  To accept 1” Female thread or 1 ¼” slip installation within the same unit.

3.  To accept 1” Female BSP thread or 1 ¼” slip installation within the same unit.

Features:

• Heavy Duty, Corrosion and UV Resistant PVC Construction – Increases the life of the valve.


• Combination 1” and 1 ¼” – Provides the option to increase the pipe size to the valve, increasing the flow rate.


• Tilt Diaphragm/Piston Assembly – Allows for a straight flow path of the water increasing the flow rate while reducing friction loss.


• Debris Tolerant Design – Provides flexibility for use in the potable or dirty water applications.


• Manual External Bleed Screw – Provides for manual operation in system start up.


• Manual Internal Bleed-Through Solenoid – Provides for manual operation without discharging water outside the valve.


• Flow Control with Removable Handle – Allows for precise flow adjustment and manual shut-off and allows you to remove the handle to prevent tampering (except in model number 7001-NFC).


• Captured Plunger – Allows for the solenoid to be removed without losing the interal plunger.


• Self-Cleaning Metering Screen – Screen is in the turbulent flow of the water, allowing self cleaning action during operation.

Specs:

Operating Specifications:

Pressure Rating – 20 -150 PSI

Pressure Loss @ 30 GPM – 5 PSI

Flow Range – 0.75 – 35 GPM

Electrical Specifications:

Solenoid – 24 VAC 60 Cycle

Inrush Current - .43 Amps

Holding Current - .25 Amps

Dimensions:

Height: 4” Width: 3” Length: 5 ¼”

Downloads:

Catalog

Product Brochure

Bidding Specs

Instruction Guide

Videos

K-Rain SUPERPRO® ROTOR SPRINKLER WITH FLOW SHUT OFF FEATURE (with Check Valve)

The SUPERPRO® Rotor, with its patented flow shut-off, allows for easy range and flow adjustment and renders installations easier and drier.  With a simple adjustment, you can shut off water flow at the head OR easily modify both flow and distance proportionally without changing nozzles.

SUPERPRO® has a patented Arc Memory Clutch that returns the rotor to its pre-set position. Designed for medium to large landscape areas, the adjustable arc and full-circle gear driven rotor comes standard with 13 numerically coded, interchangeable nozzles (8 Standard Nozzles, 4 Low Angle Nozzles and 1 Pre-Installed 2.5 Nozzle).

The SUPERPRO® is packed with features that ensure reliability, saving the installer time, money and needless frustration.

Features:

• Patented Flow Shut-Off/Range and Flow Adjustment-Allows individual head to be turned off during installation and adjustment OR allows simple range and flow adjustment without changing nozzle.


• Revolutionary Patented Easy Arc Set – Simplified arc set allows for wet or dry adjustment in seconds.


• 5” Riser-Perfect for taller grass.


• ¾” Female Threaded NPT Inlet-Replaces all standard rotors.


• 2N1 Adjustable or Continuous Rotation-Provides a full range of adjustment from 40 degrees to a continuous, non-reversing circle.


• Patented Arc Set Degree Markings-Clearly indicates the current watering pattern and simplifies arc set adjustment.


• Arc Memory Clutch-Prevents internal gear damage and returns rotor to its prior setting automatically if nozzle turret is forced past its stop.


• Time proven Patented Reversing Mechanism-Assures continuous reverse and return..over a 20 year history.


• Ratcheting Riser-Allows for easy adjustment of your left starting position with a simple turn of the riser.


• Rubber Cover-Seals out dirt and increases product durability.


• Wide Selection of  Nozzles- Including standard and low angle, provides flexibility in system design.


• Optional Check Valve – Prevents low head drainage.

Specs

•  Inlet -3/4” Threaded NPT


• Arc Adjustment Range -  40 to 360 degrees


• Flow Range - .5 to 10.0 GPM


• Pressure Rating – 20 to 70 PSI


• Precipitation Rate - .05 to .74 Inches Per Hour (Depending on Spacing and Nozzle)


• Overall Height (Popped Down) -  7 ½ ”


• Recommended Spacing – 28’ to 44’


• Radius – 26’ to 49’


• Nozzle Trajectory – 26 degrees


• Low Angle Nozzle Trajectory – 12 degrees


• Standard and Low Angle Nozzles included


•  Riser Height – 5”

Downloads

Specs

Setting Instructions

Bidding Specs

Performance Charts

Videos

K-Rain R200 Rain Sensor

Automatically shut off your irrigation system during rain or wet conditions with R 200 Rain Sensor. Moisture sensing works in a variety of climates.

The R 200 Rain Sensor is compatible with all K-Rain Single and Multi Station Irrigation System Controllers.

Features

Prevents automatic watering when raining or during wet conditions

Compatible with all K-Rain Irrigation System Controllers

Provides conservation, convenience, and flexibility in your fully automatic watering system

Specs

Mounting:

The R 200 Sensor includes 2 mounting options

1. Rain Gutter

2. Flat Surface

Wiring:

The R 200 Sensor is sold and designed for 24-VAC irrigation controllers only.

Downloads

Instruction and Installation Guide

K-Rain RPS 469 IRRIGATION CONTROLLER - 4, 6 & 9 STATION MODELs

Designed for residential and light commercial applications, the RPS 469 has six individual programs to allow for efficient watering on separate program.

This product features Rain Sensor Ready (RSR) Technology which allows individual stations to be controlled by a rain sensor. Save water and reduce costs!

'

Features:

• 4, 6 & 9 Station Models – Perfect for residential & light commercial applications.


• 6 Fully Independent Programs – Allowing up to 6 starts per program.  Maximum 36 starts per day.


• Indoor or Outdoor installation.


• Water Conservative – Allows for quick adjustment of watering durations in 10% increments, from 10% to 200%.


• Rain Sensor Ready – Accepts rain sensor and allows individual stations to be set and controlled by the sensor.


• Flexible Manual Operation – Automatic, semi-automatic, and single station manual.


• System Test – Allows a full system check for valve operation.


• Permanent Memory – Saves programs during power outages.


• Weatherproof Enclosure – Ensures long product life.

Specs:

• Dimensions: Height 8.8” Width 7.9” Depth 2.9”


• Station Run Times - 1 min. to 12 hours 59 min.


• Programs -  6


• Start Times – 6 per program


• Watering Schedule – 7 day calendar with individual day selection, or 1 to 15 day interval watering, or 365 day calendar for ODD/EVEN day or interval watering.


• Rain Sensor Ready – Inhibits automatic watering when wet conditions are detected by a suitable rain sensor.


• Master valve/Pump can be enabled or disabled by station or by program.


• Automatic, semi automatic & single station manual operation.


• Capable of programming remotely using a standard 9 volt alkaline battery.  Permanent memory saves programs during power outages.

Electrical Specifications:

• Electrical Power Supply – 100 – 120 VAC/60Hz/230 VAC/50Hz


• Electrical Outputs – 24 Volt AC, 1.0 AMP


• To Solenoid Valve – 24 VAC 50/60 Hz 0.75 AMPS max.  NOTE: Up to 3 valves per station on inbuilt model.


• Total output load not to be exceeded by the valves and pump start requirements.


• Overload protection: Standard 20mm 1.0 AMP fuse


• Power Failure – 9 volt standard alkaline battery permanently maintains clock and program.


• Power Failure – The controller has permanent memory so the data is always backed up even during power outages.

Downloads

Controller Operation Manual

Specs

Door Instructions

K-Rain PROSPORT® ROTOR SPRINKLER

The PROSPORT® Rotor is K-Rain’s next generation of professional rotor, designed specifically for sports turf applications. The PROSPORT®comes standard with a unique triple nozzle. The triple nozzle configuration consists of a primary nozzle for long distance and two secondary nozzles for mid-range and short distance coverage. This nozzle design provides even water distribution from 45 to 77 feet.

PROSPORT® comes in a high speed version, ideal for quick wet downs and dust control. Available in plastic or the ever popular stainless steel, this product comes with six color-coded nozzles.

Features:

• Revolutionary Patented Easy Arc Set – Simplified arc set allows for wet or dry adjustment in seconds.


• Triple Nozzle Configuration-Ensures even distribution of water.


• 2N1 Adjustable or Continuous Rotation-Provides a full range of adjustment from 40 degrees to a continuous full circle.


• Patented Arc Set Degree Markings-Clearly indicates the current watering pattern and simplifies arc set adjustment.


• Arc Memory Clutch-Prevents internal gear damage and returns rotor to its prior setting automatically if nozzle turret is forced past its stop.


• Time proven Patented Reversing Mechanism-Assures continuous reverse and return..over a 20 year history.


• Heavy Duty Rubber Cover-Seals out dirt and increases product durability.


• Rubber Mud Guard-Allows sprinkler to be installed below grade.


• Wide Selection of  Nozzles- Six color coded nozzles included, providing flexibility in system design.


• Factory Installed Check Valve – Prevents low head drainage.

Specs:

• Inlet -1”” Female Threaded NPT Domestic and 1” Female BSP International


• Arc Adjustment Range -  40 to continuous 360 degrees


• Flow Range – 5.9 to 32.5 GPM


• Pressure Rating – 40 to 90 PSI


• Precipitation Rate - .3 to .78 Inches Per Hour (Depending on Spacing and Nozzle)


• Overall Height (Popped Down) -  9 ½  ”


• Recommended Spacing – 40’ to 65’


• Radius – 45’ to 77’


• Nozzle Trajectory – 26 degrees


• Riser Height – 4”

Downloads:

Bidding Specs

Product specs

Performance Chart

Setting Instructions

K-Rain MINIPRO® ROTOR SPRINKLER

The MINIPRO® Sprinkler is perfect for irrigating small lawn and landscape areas and saves water and money when used to replace spray heads.

When considering the industry leading MINIPRO®Sprinkler, think water efficiency. Now available in three popular heights and compatible with a wide selection of nozzles, the MINIPRO® brings flexibility to sprinkler system design.

Features:

• Revolutionary Patented Easy Arc-Set – Simplified arc set allows for wet or dry adjustment in seconds.


• ½” Inlet-Replaces all standard mini rotors and pop-up sprays.


• Adjustable to 360 Degrees -  Provides a full range of adjustment from 40 to 360 degrees.


• Patented Arc Set Degree Markings – Clearly indicates the current watering pattern and simplifies arc set adjustment.


• Time Proven Patented Reversing Mechanism – Assures continuous reverse and return…over a 20 year history.


• Ratcheting Riser – Allows for easy adjustment of your left starting position with a simple turn of the riser.


• Rubber Cover – Seals out dirt and increases product durability


• Wide Selection of Nozzles – Provides flexibility in system design.


• Optional Check Valve – Prevents low head drainage.

Specs:

• Inlet - ½” Threaded NPT


• Arc Adjustment Range -  40 to 360 degrees


• Flow Range - .75 to 3.3 GPM


• Pressure Rating – 20 to 70 PSI


• Precipitation Rate - .22 to .41 Inches Per Hour (Depending on Spacing and Nozzle)


• Overall Height (Popped Down) -  6”


• Recommended Spacing – 17’ to 28’


• Radius – 17’ to 30’


• Nozzle Trajectory – 26 degrees


• Riser Height – 4”, 6”, 12”

Downloads:

Product specs

Performance Chart

Setting Instructions

Drip Systems

1. Drip Irrigation Set

Items	Quantity (Pcs)
Main Hose	15m
Dripper	30
Straight	2
Elbow	6
Tee	2
End	4
Valve	1
Water Timer	1

2.

Items	Quantity (Pcs)
Timer with fittings with batteries	1
Nipple	20
Yellow 3/4 OT Valve	1
Red Dripper	10
Tee	2
Straight	2
Elbow	6
Bubbler Sprinkler	20
Puncher	1

3.

Items	Quantity (Pcs)
Irrigation Timer	1
Two-way Faucet Adaptor	1
1/4 " Barbed Tee Connector	20
Adjustable Dripper	20
1/4" Micro Hose	20
1/4 " Hose Stake	20
Hose End Cap	2
Nylon Cable 4 X 200mm	20

Hunter Rain-Clik

RAIN-CLIK™

Sensor:Rain

RAIN-CLIK’S QUICK RESPONSE™ STOPS IRRIGATION THE INSTANT RAIN STARTS TO FALL

Most rain-sensing devices work by accumulating a set amount of rainfall before a switch is activated that interrupts the circuit from the controller and shuts off the system. In that “accumulation time”, the system will unnecessarily continue to water. This can look especially bad for conservation-conscious municipalities, businesses, and residences. With built-in Quick Response technology, the Hunter Rain-Clik and Wireless Rain-Clik can command a controller to shut off right when it starts to rain. The Rain-Clik can be mounted on an eave or any flat vertical surface like a wall or fence. A gutter mount is also available that allows for easy installation of the Rain-Clik on the edge of a gutter.

• Quick Response™ feature shuts the system off as soon as it starts raining
• Maintenance-free design with 10-year battery life for Wireless Rain-Clik
• Adjustable vent ring allows for setting of reset delay
• Rugged polycarbonate housing and metal extension arm
• Rain-Clik includes 7.6 m of 0.5 mm2 (20 AWG) sheathed, two-conductor, UL-approved wire
• Wireless unit available with 244 m range from wireless sensor to receiver
• Warranty period: 5 years (10 year battery warranty for wireless model)
• Compatible with most controllers

Specifications

• Wiring: normally closed or normally open
• Time to turn off irrigation system: 2 to 5 minutes approx. for Quick Response
• Time to reset Quick Response: 4 hours approx. under dry, sunny conditions
• Time to reset when fully wet: 3 days approx. under dry, sunny conditions
• Switch rating: 24 VAC, 3 A
• Freeze sensor shuts system off when temperatures fall below 3˚ C (Rain/Freeze-Clik model)
• System operating frequency: 433 MHz
• UL listed, FCC approved, suitable for use in Australia, CUL (CSA), CE
• Communication range up to 244 m line of sight (Wireless model)
• Receiver input power: 24 VAC (from controller)

Downloads

Brochure 1

Brochure 2

WR-CLIK-TR

Height: 7.6 cm
Length: 20 cm

RAIN-CLIK

Height: 6.4 cm
Length: 18 cm

WR-CLIK-R

Height: 8.3 cm
Height: 10 cm

SGM

Optional gutter mount
